BT Anchor


bt anchor sizes photo BT ANCHOR CHART SIZE_zpskxvcvspn.jpg

Material:

Mild steel, Stainless steel


Size:

Metric size


Finish treatment:

Yellow zinc plated, Blue zinc plated (Environment-friendly) & Mechanical galvanized


Applications:

  • Light to medium duty into concrete, brick and block
  • Cable trays
  • Window and door frames
  • Shelving and racking

Features:

  • Heavy loading capacity
  • Sleeve design improve holding power

Technical Information:

  1. Drill correct diameter hole to recommended depth.
  2. Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.
  3. Insert anchor through fixture and tap in until washer contacts fixture.
  4. Tighten bolt with torque wrench to recommended assembly torque.



195510?1433825433

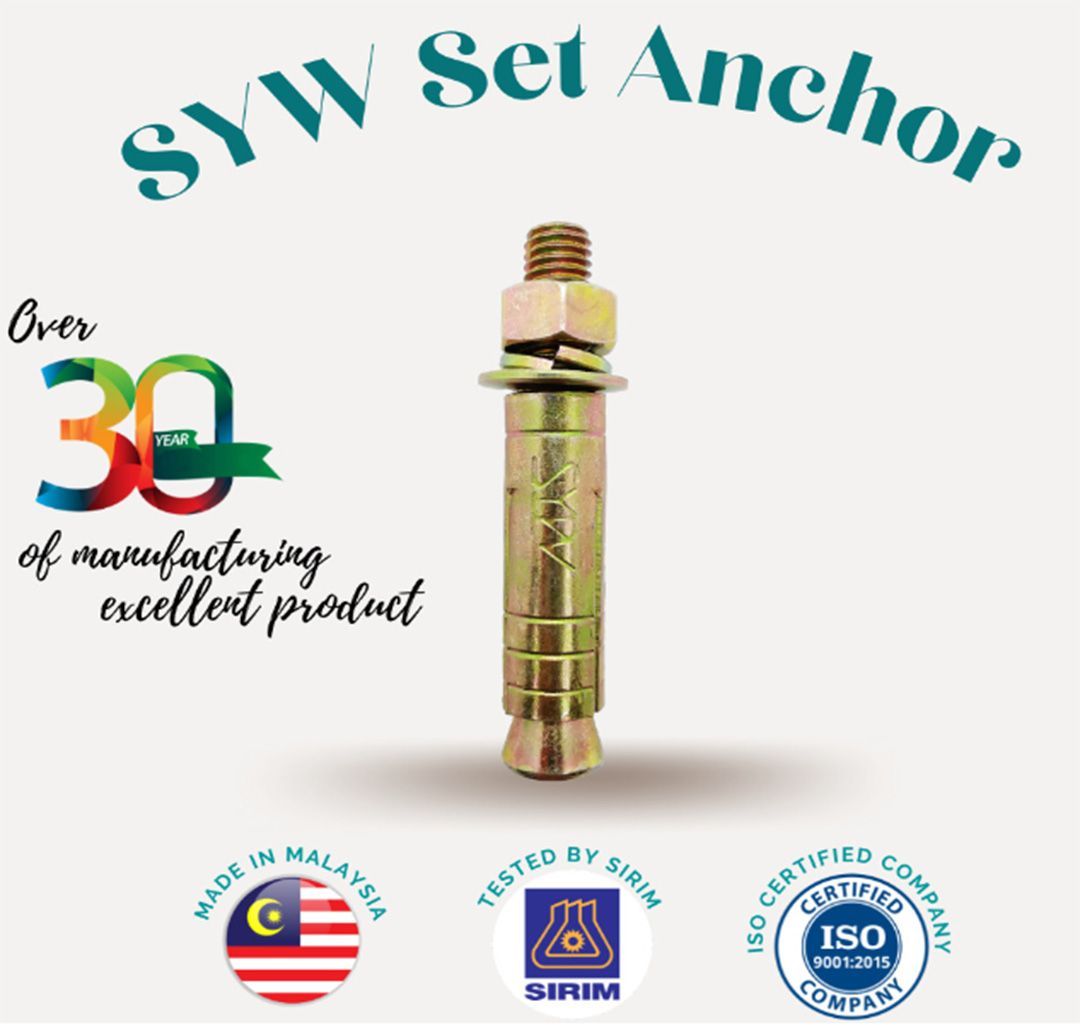

Set Anchor

 photo set anchor chart_zpsuuyseb2o.jpg

Material:

Mild steel


Finish Treatment:

Yellow zinc plated, Blue zinc plated(Environment- friendly), Mechanical galvanized


Applications:


Use for heavy loaded, fix the heavy steel construction, machine equipment, working structure, elevator lift etc.



Benefits:


  • Heavy load capacity
  • Vibration resistance
  • High holding power

Technical Information:


  1. Drill correct diameter hole to recommended depth.
  2. Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.
  3. Insert the anchor in hole.
  4. Using setting tool, tap in until contact with base material.
  5. Tighten bolt with torque wrench to recommended assembly torque.

195513?1433825543

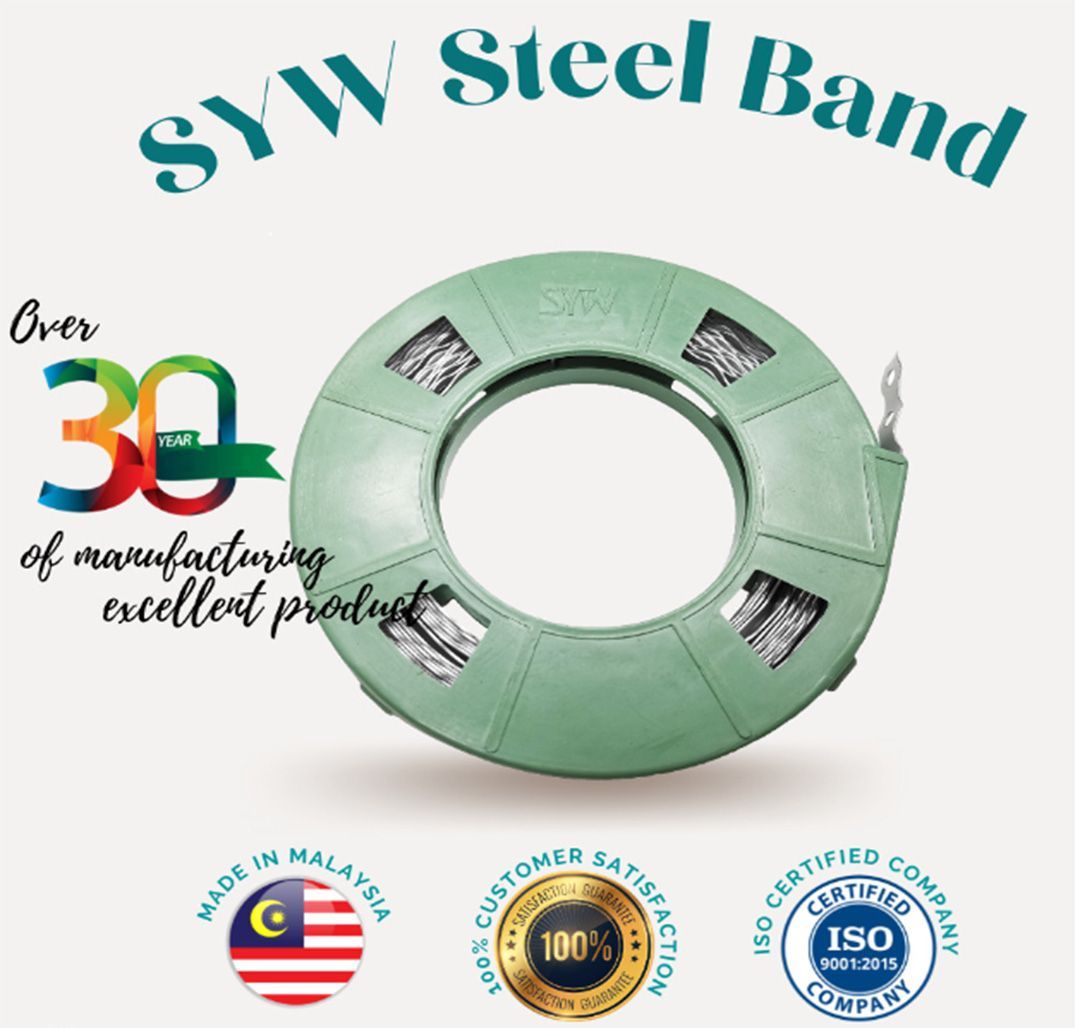

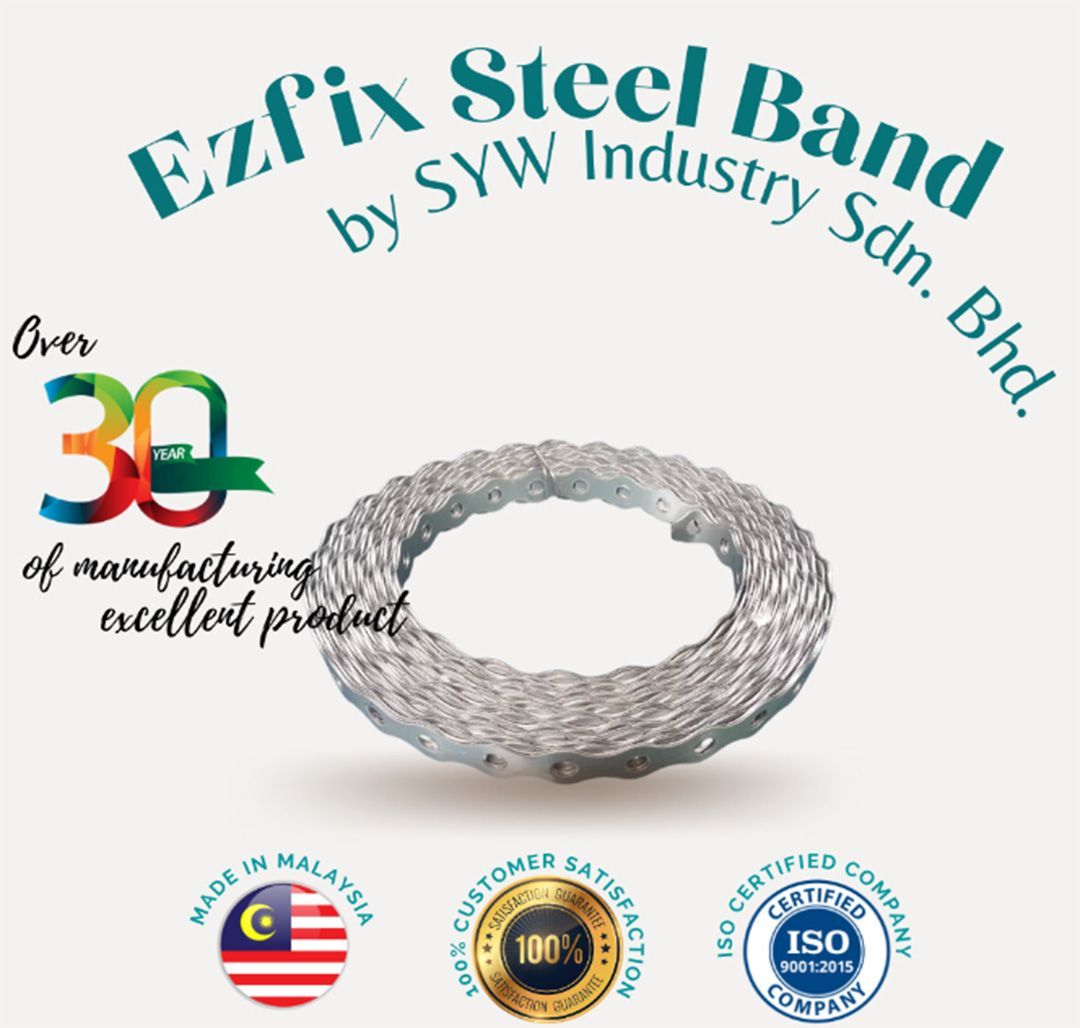

Steel Band


 photo SB size_zpsuabnp0qa.jpg

Material:

Galvanised steel, Stainless steel, PVC coated

Applications:

  • Perforated strapping band used for hanging large sized pipes, ducts or other miscellaneous items.
  • use for joist strutting, window frame and sill fixing, fencing repairs and construction, hanging duct work.
  • Fixing pipes and tubes, vertical PVC pipes, suspended installation. anchoring electrical, building ventilation & many kind of installations.

Features:

  • Wide range, flexible fixing system
  • Quick effective way of securing cables
  • Easy to cut and bend
  • Can support anything from light to heavy weight
  • Easy to install perforated strapping band with evenly spaced holes


195128?1437405858

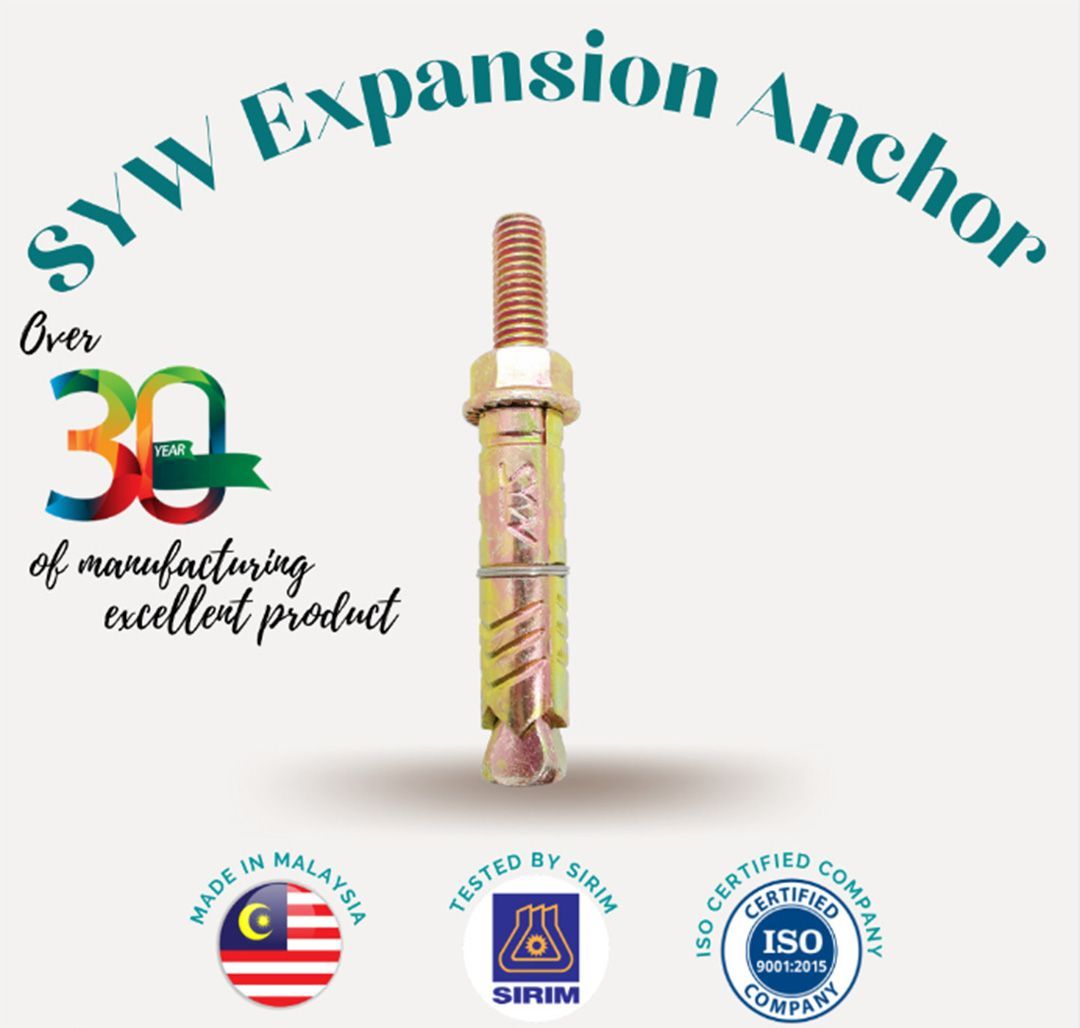

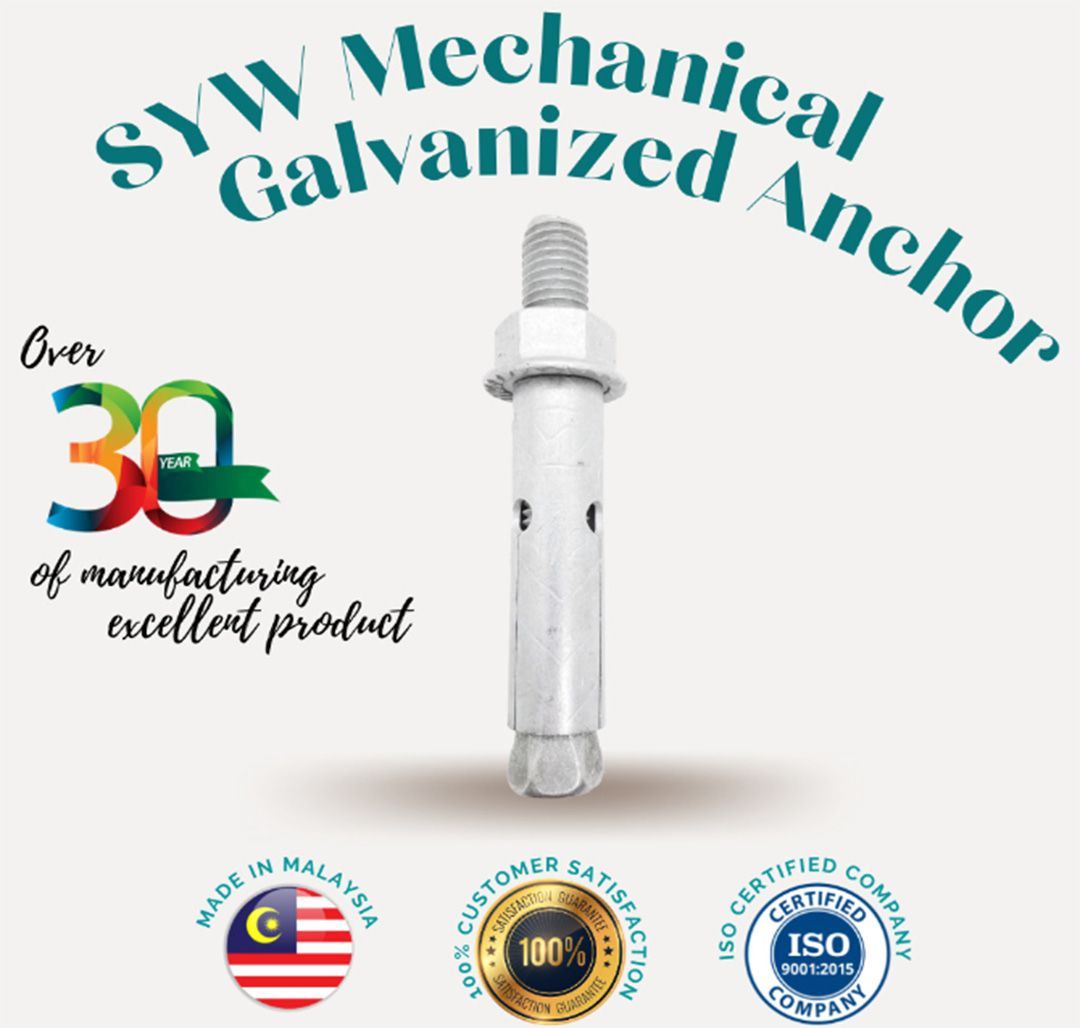

Expansion Anchor

 photo expansion size_zpseairtvuj.jpg

Material:

Mild steel

Size:

metric  size

Finish Treatment:

Yellow zinc plated, Blue zinc plated(environment-friendly), machanical galvanized

Applications:

  • Light to heavy duty anchoring into solid concrete only.
  • Curtain wall
  • Passenger lifts
  • Pipe support
  • Dock bumper
  • Pedistel


Features:

  • Easy to use
  • Anchor can be installed through standard fixture holes.
  • Nominal drill bit size is the same as the anchor diameter.


Technical Information:


  1. Drill correct diameter hole to recommended depth.
  2. Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.
  3. Insert anchor through fixture and tap in until washer contacts fixture.
  4. Tighten bolt with torque wrench to recommended assembly torque.

194776?1437405208

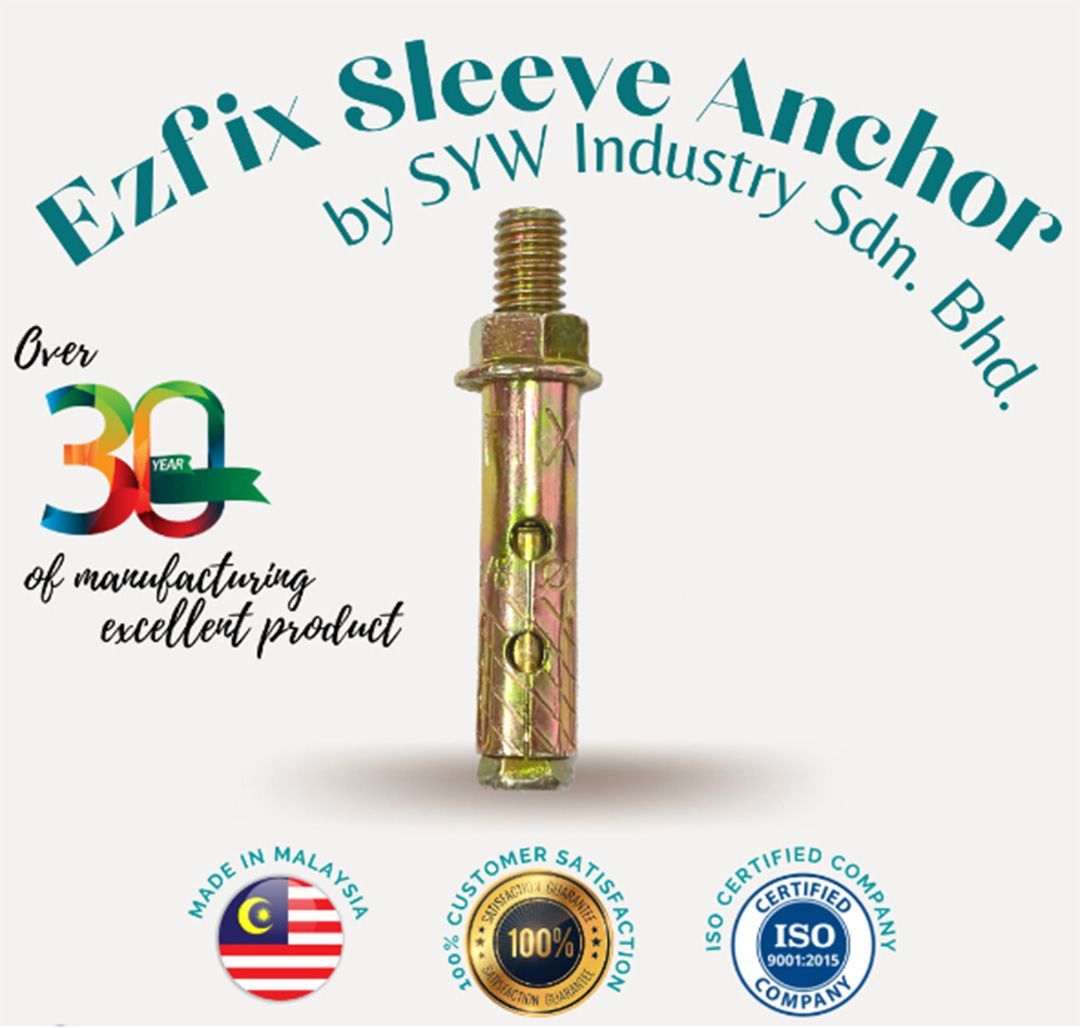

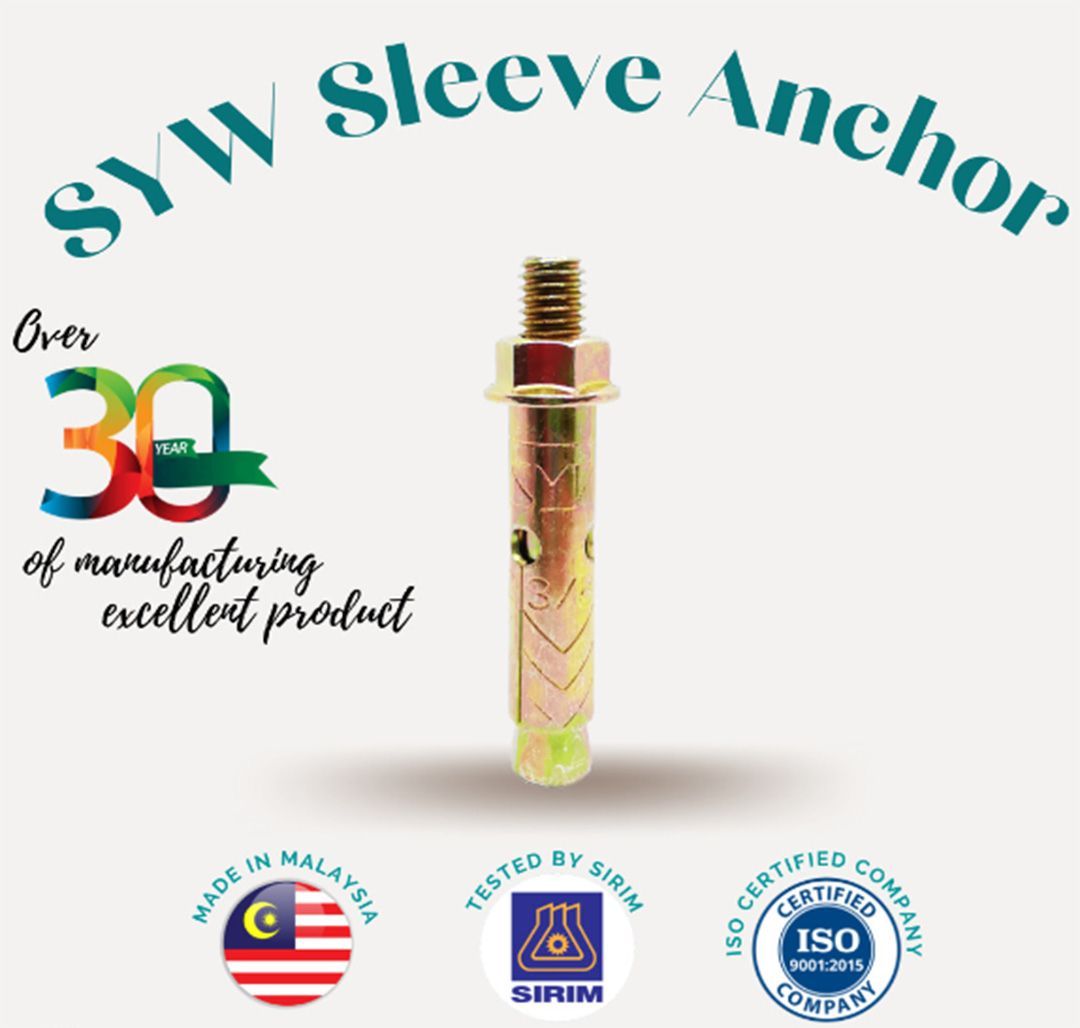

Sleeve Anchor

 photo Sleeve Anchor sizes_zpsrwid4qv1.jpg


Material:

Mild steel, Stainless steel


Size:

Metric & inch sizes are available.


Finish treatment:

Yellow zinc plated, Blue zinc plated & Mechanical galvanized


Applications:

  • Light to medium duty into concrete, brick and block
  • Cable trays
  • Window and door frames
  • Shelving and racking

Features:

  • Heavy loading capacity
  • Pre-assembled for faster & easier installation
  • Sleeve design improve holding power
  • Anti corrosion

Technical Information:

  1. Drill correct diameter hole to recommended depth.
  2. Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.
  3. Insert anchor through fixture and tap in until washer contacts fixture.
  4. Tighten bolt with torque wrench to recommended assembly torque.
